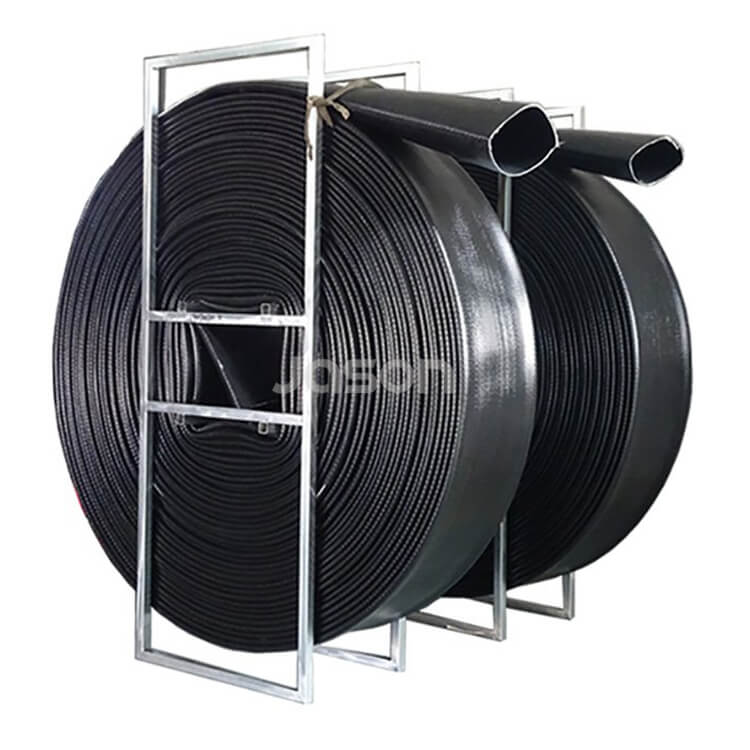

10 Inch Layflat Hose

10 inch layflat hose is a TPU layflat hose desined for various industries and applications. (If you need 10 inch PVC layflat hose, please click here). This type of hose is designed to be easily transported, stored, and deployed, making it ideal for emergency response, irrigation, and water transfer projects. The 10 inch diameter allows for a high volume of water to flow through, making it efficient for large-scale operations. Its layflat design means that it can be quickly unrolled and connected to water sources, saving time and effort. Overall, a 10 inch layflat hose is a reliable and valuable asset for any project requiring the transfer of large volumes of water.

10 Inch Layflat Hose

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Black or as required

Size: 10 inch(DN250)

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life

Application

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

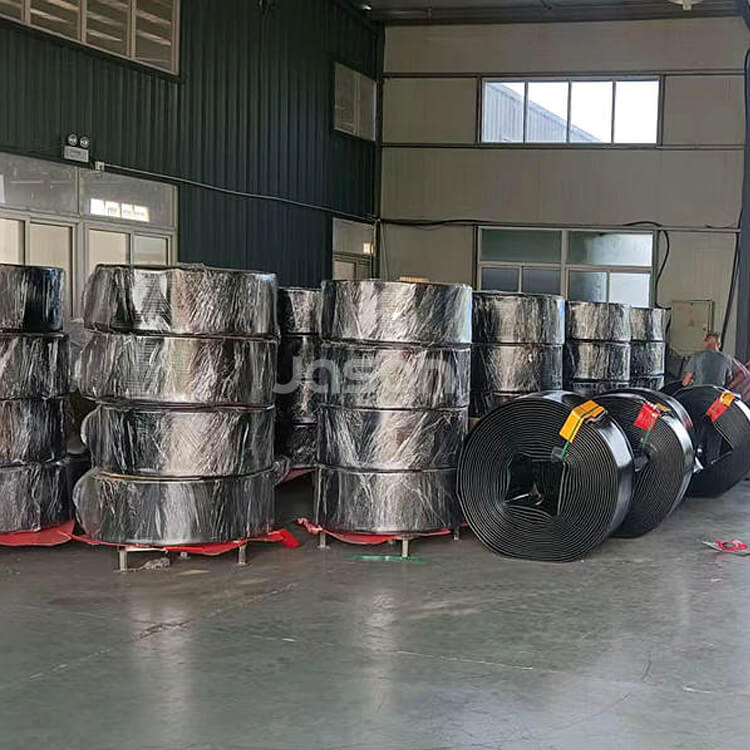

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	M/ft
8	204+3	14	200	42	600	4.2	200/660
10	254+3	14	200	42	600	4.5
12	305+3	10	150	30	450	4.8
14	355+3	10	150	30	450	5.0
16	406+3	8	120	24	450	5.4

Size, working pressure and wall thickness can be customized as required.

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
