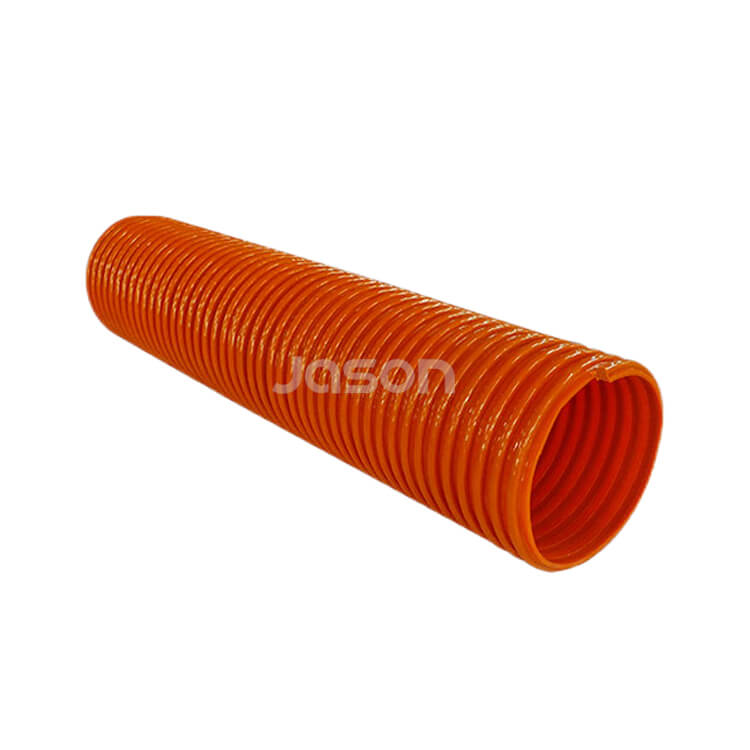

10 Inch Suction Hose

Construction

Wall: High quality PVC

Reinforcement: Rigid PVC helix(polyester fabric as required)

Technical Parameters

Color: Orange, red, green or as required

Size: 10 inch(DN250)

Length: up to 30m(100ft)

Temperature: -10°C(14°F)-70°C(158 °F)

Features

Large size, heavy duty, durability, high abrasion resistance, flexibility, high negative pressure, smooth inner construction for unrestricted flow of materials

Application

Irrigation lines, pumps, rental and construction dewatering, trash pumps, suction and discharge, water suction – heavy duty

Production Process

Specification

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
2-1/2	63	71	4	60	12	180	1170	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
5	125	137	3	45	9	135	3300	30
6	152	166	2	30	6	90	5500	20
8	200	214	2	30	6	90	6300	10
10	254	270	2	30	6	90	10000	10
12	305	329	2	30	6	90	18000	10
14	358	382	2	30	6	90	20000	10
16	408	432	2	30	6	90	23000	10

Size, working pressure can be customized as required

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in suction hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of suction hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specication?
A4: Yes, we can customize the goods, and we also need more details.
