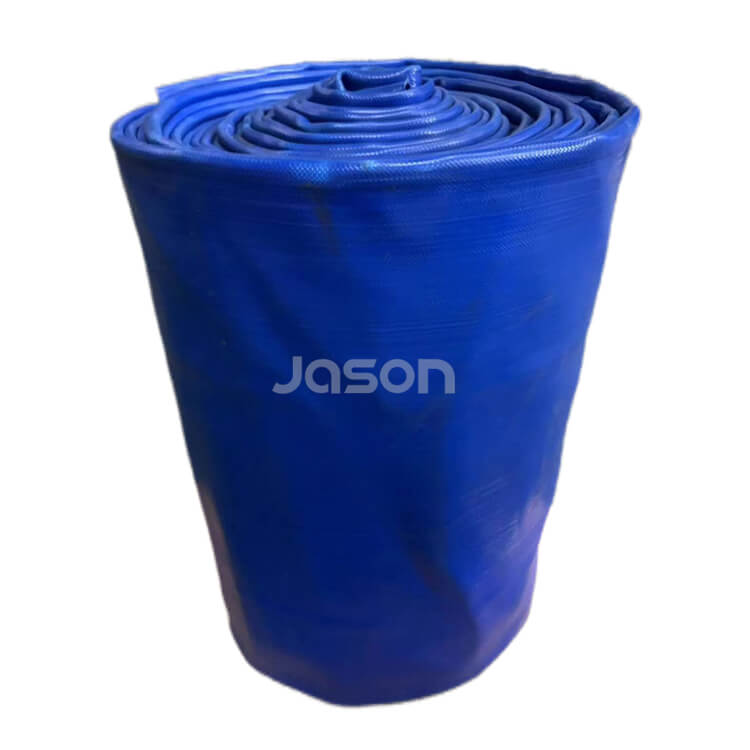

16 Inch Discharge Hose

16 inch discharge hose is a PVC layflat hose for transferring water in agriculture, construction, civil engineering and emergency applications. (If you need 16 inch TPU layflat hose, please click here). Its larger size allows for higher flow rates and greater efficiency in moving large volumes of liquid. The layflat design allows for easy storage and transportation, while still providing a strong and reliable connection between the source and destination. With its high-quality construction and resistance to abrasion and punctures, the 16 inch layflat discharge hose is a good choice for large-scale water transfer needs.

16 Inch Discharge Hose

Construction

Cover and Liner: High quality PVC

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Blue, red, black, orange or as required

Size: 16 inch(DN400)

Length: 20m (66ft), 50m (164ft) or as required

Temperature: -20°C(-4°F)-70°C(158 °F)

Features

Light weight, cost-saving, easy to storage or transport, abrasion resistance, excellent flow rates

Application

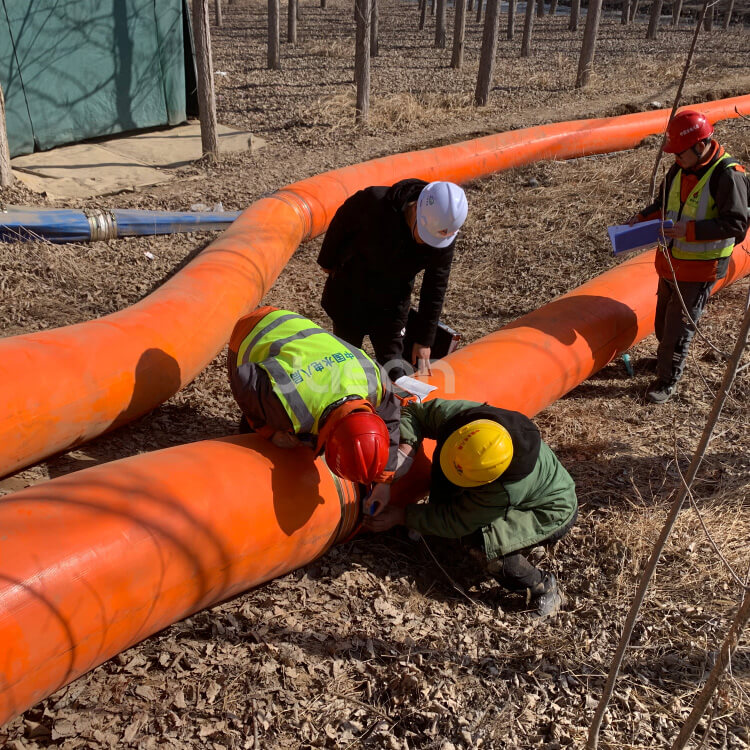

Large volume of water discharge and supply in agricultural, construction, civil engineering and emergency

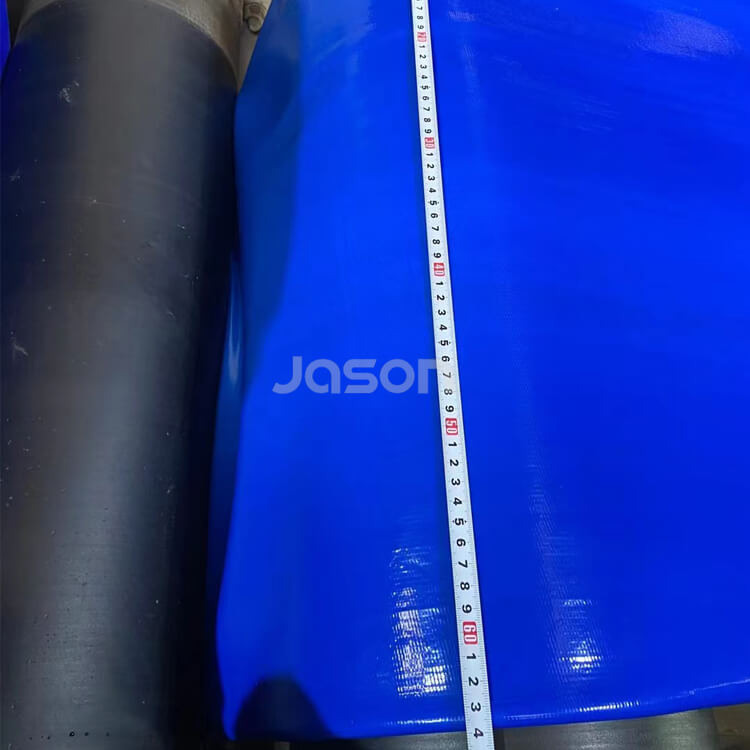

Production Process

Specification

Size		Working Pressure		Burst Pressure		Length
Inch	mm	Bar	Psi	Bar	Psi	m/ft
1	25	4	58	12	174	20m (66ft), 50m (164ft)
1 1/2	38	4	58	12	174
2	51+1.5	4	58	12	174
2 1/2	64+1.5	4	58	12	174
3	76+2.0	4	58	12	174
4	103+2.0	6	87	18	261
6	154+2.5	6	87	18	261
8	204+3	4	58	12	174
10	254+3	3	44	9	130
12	305+3	3	44	9	130
14	355+3	3	44	9	130
16	406+3	3	44	9	130
18	455+3	2	29	6	87
20	508+3	2	29	6	87

Size, working pressure can be customized as required

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
