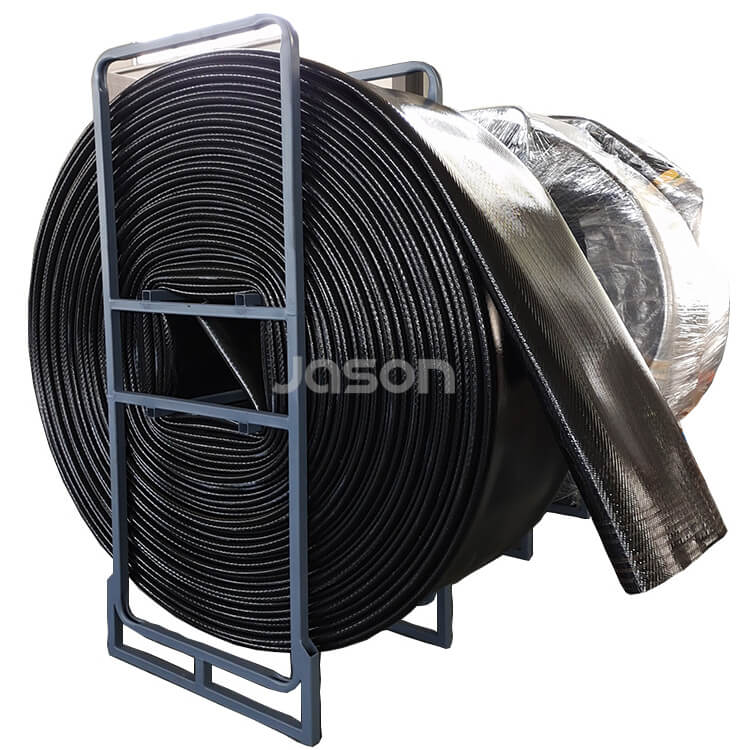

16 Inch Layflat Hose

16 inch layflat hose is a TPU layflat hose used in a variety of applications, includes irrigation, firefighting, industrial dewtering, oil and gas. (If you need 16 inch PVC layflat hose, please click here). Its large diameter allows for a high volume of water flow, making it ideal for quickly moving large amounts of water over long distances. The layflat design allows for easy storage and transportation, as it can be rolled up when not in use. Made from strong materials TPU, the 16 inch layflat hose is built to withstand rough conditions and heavy use. Overall, this hose is an essential piece of equipment for any operation that requires the efficient and effective movement of water.

16 Inch Layflat Hose

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Black or as required

Size: 16 inch(DN400)

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life

Application

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	M/ft
8	204+3	14	200	42	600	4.2	200/660
10	254+3	14	200	42	600	4.5
12	305+3	10	150	30	450	4.8
14	355+3	10	150	30	450	5.0
16	406+3	8	120	24	450	5.4

Size, working pressure and wall thickness can be customized as required.

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
