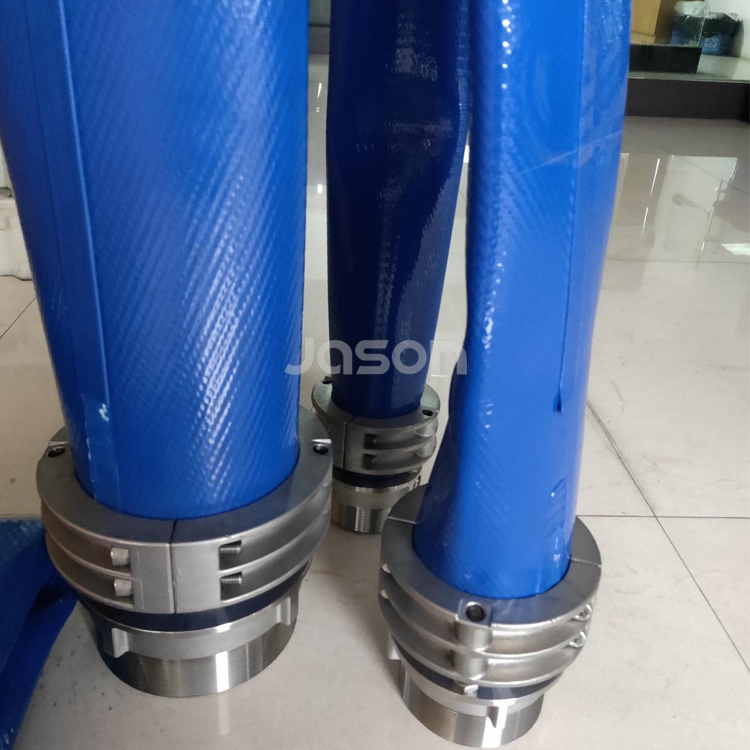

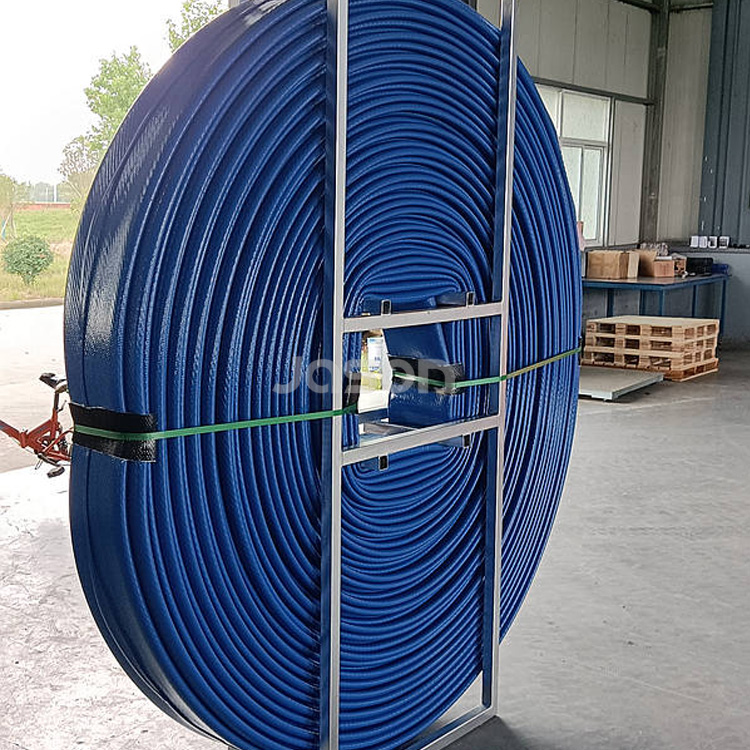

Boreline hose

Construction

Cover: High quality TPU with blue polypropylene cable ties or polyurethane straps

Reinforcement: High tenacity synthetic yarn

Liner: High quality TPU

Technical Parameters

Color: Blue or as required

Size: 1.5 inch-8 inch

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

High pressure, high tensile strength, oil and chemicals resistance, UV resistance, corrosion resistance, easy to install and retrieve, long lifetime and excellent flow rates

Application

Mine dewatering, bore water pumping, irrigation/agriculture, groundwater extraction – drinking water

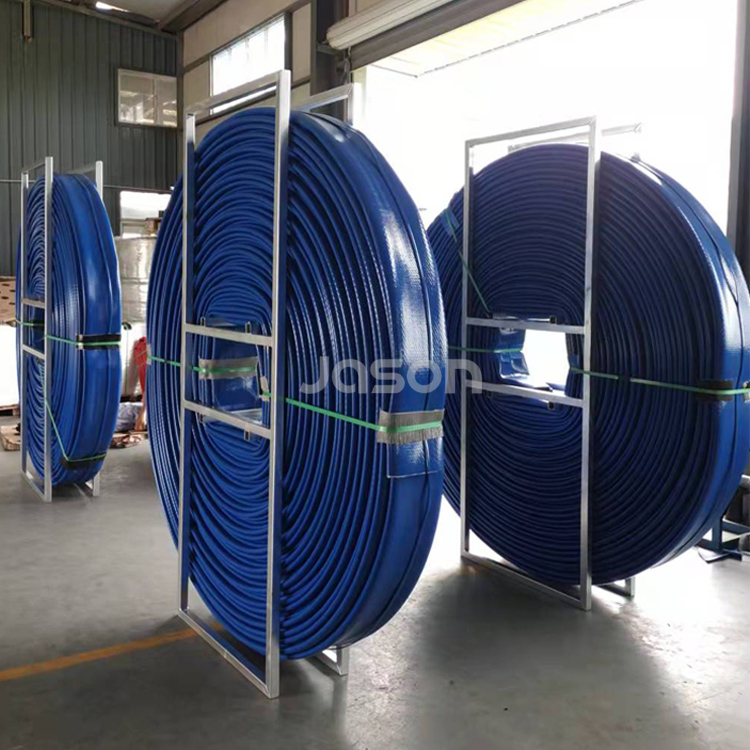

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
1.5	39+1.5	30	430	63	920	2.4	200/660
2	51+1.5	30	430	63	920	2.8
3	77+2.0	25	360	58	820	3.2
4	103+2.0	25	360	58	820	3.5
6	154+2.5	25	360	58	820	3.9
8	204+3	15	200	42	600	4.5

Size, working pressure and wall thickness can be customized as required

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
