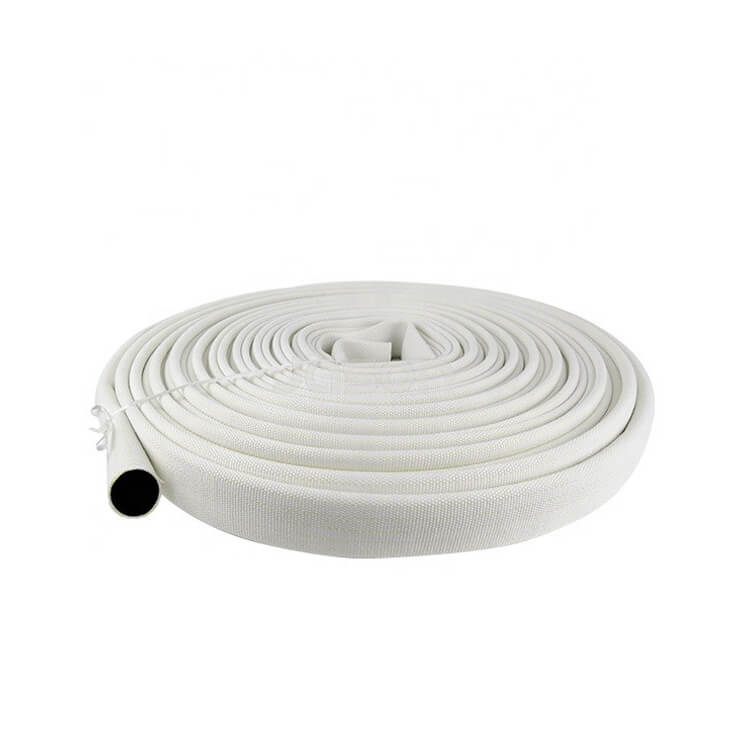

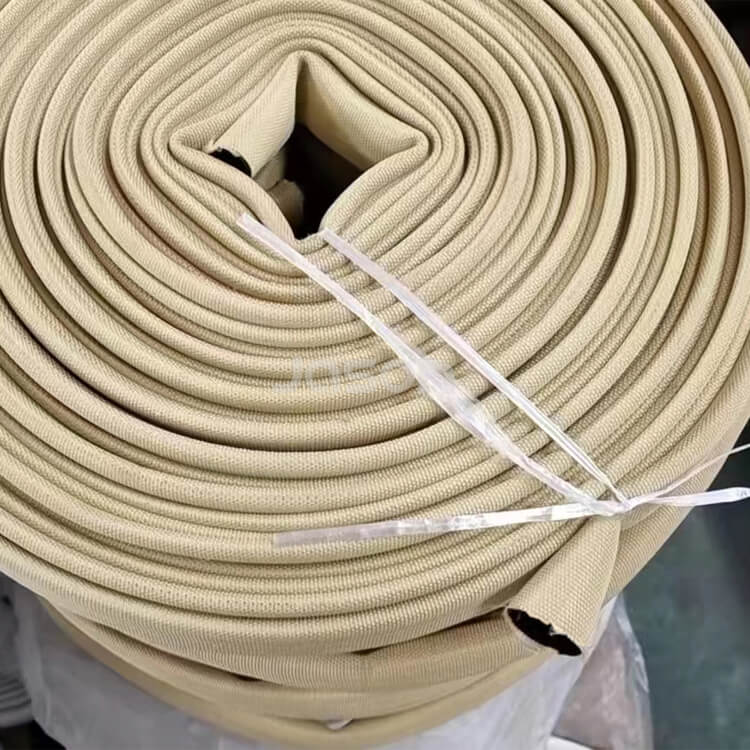

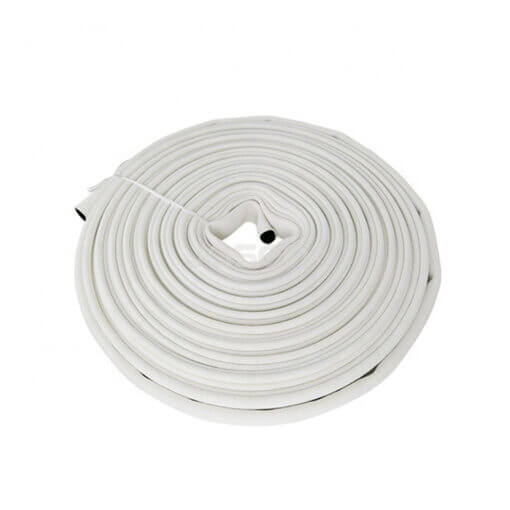

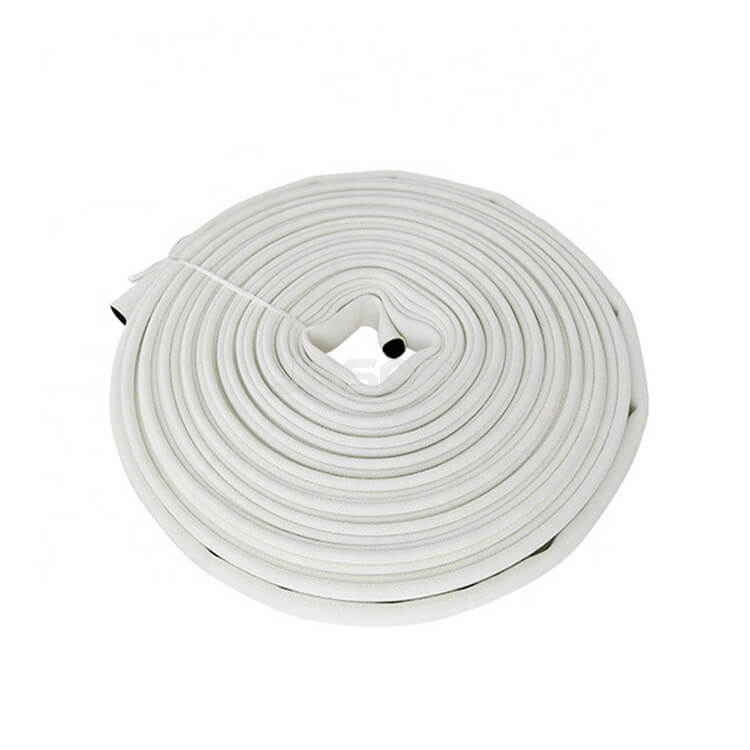

Doctor Blade Air Hose

Doctor blade air hose is a crucial component in the printing industry, responsible for delivering pressurized air to the doctor blade chamber. This air hose ensures that the doctor blade remains in constant contact with the surface of the printing cylinder, controlling the amount of ink being applied and ensuring a consistent and high-quality print. Without the proper functioning of the doctor blade air hose, the printing process would be compromised, leading to potential issues such as streaking, smudging, and inconsistent ink coverage. It is important for printers to regularly inspect and maintain their doctor blade air hose to ensure optimal performance and print quality.

Doctor Blade Air Hose

Construction

Jacket: High tenacity synthetic yarn or aramid

Liner: High quality NBR/EPDM/Viton

Technical Parameters

Color: White, yellow or as required

Size: 5/8-4 inch

Length: 30m (100ft) or as required

Temperature: Up to 100°C(212°F)/130°C(266°F)/160°C(320°F)/250°C(482°F)

Features

High temperature resistance, acid and alkali resistance, corrosion and crack resistance, high-pressure, flexible, durable, abrasion resistance, long lifetime and reliable performance and etc.

Application

High temperature air transfer for doctor blade in paper making

Production Process

Specification

Size		Working Pressure		Burst Pressure		Length
Inch	mm	Bar	Psi	Bar	Psi	m/ft
5/8	16	30	435	90	1305	30m (100ft)or as required
3/4	19	30	435	90	1305
1	25	30	435	90	1305
1 1/4	32	30	435	90	1305
1 1/2	38	17	250	51	750
2	51+1.5	17	250	51	750
2 1/2	64+1.5	17	250	51	750
3	76+2.0	17	250	51	750
4	103+2.0	17	250	51	750

Size, working pressure can be customized as required

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
