Drag Hose

Drag hose is a thermoplastic polyurethane lay-flat hose used to transfer sludge, slurries and liquid manure in agricultural irrigation field continuously. It is designed to endure high tensile strength and high abrasion when dragged. It has the advantages of flexibility, abrasion resistance, great adhesion, high tensile strength, UV,oil and chemical resistance. It has a long lifetime and low maintenance on rougher surfaces.

Drag hose

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Orange or as required

Size: 4 inch-6 inch

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

Flexibility, abrasion resistance, great adhesion, high tensile strength, UV, oil and chemical resistance

Application

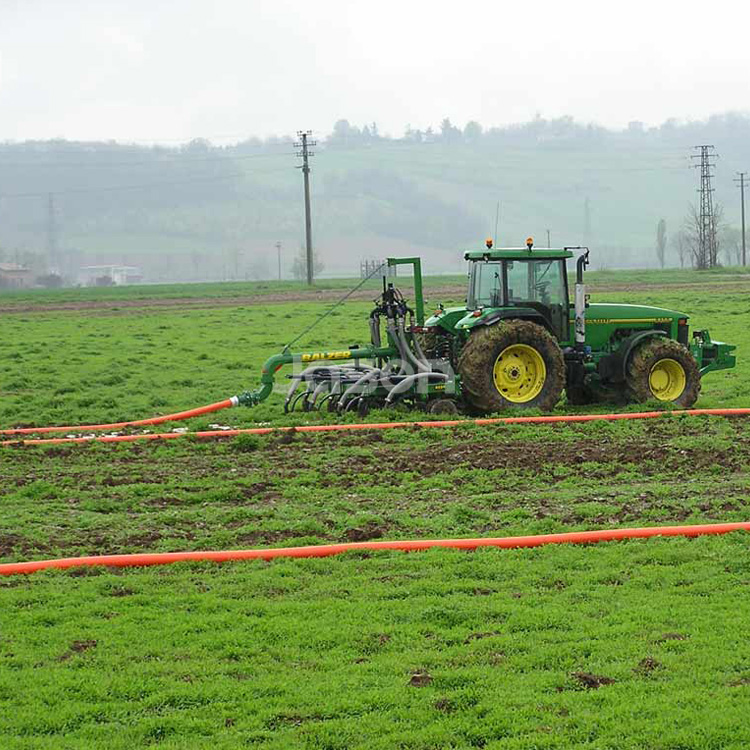

Transfer sludge, slurry and liquid manure in agricultural irrigation field

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Tensile Strength		Length
Inch	mm	Bar	Psi	Bar	Psi	mm	kgs	lbs	m/ft
4	102+2	14	200	42	600	4.0	15500	34200	200/660
5	127+2.5	10	150	30	420	4.2	19500	43000
6	153+3	10	150	30	420	4.5	25000	55500

Size, working pressure and wall thickness can be customized as required.
