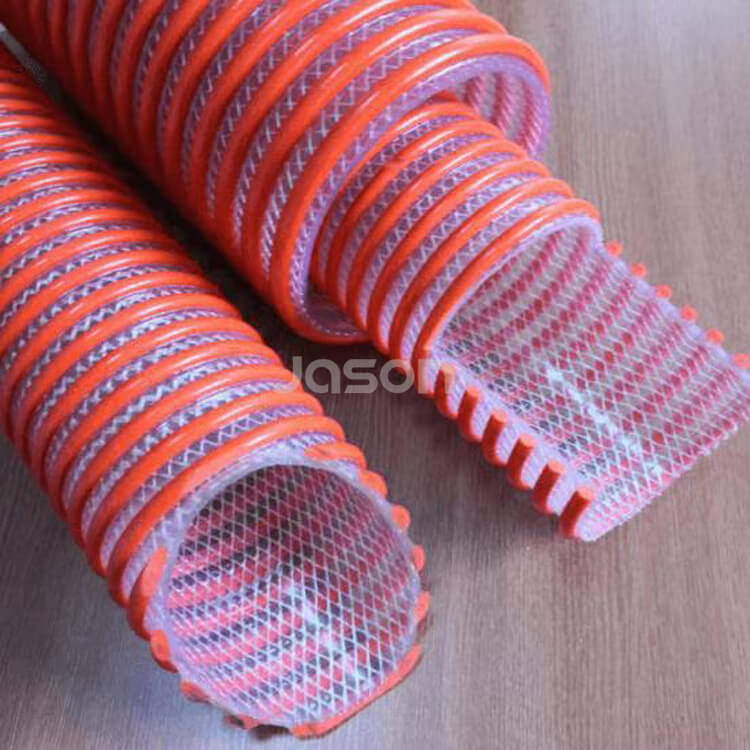

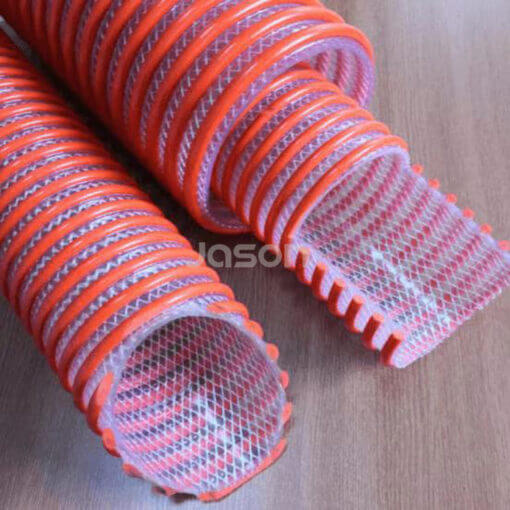

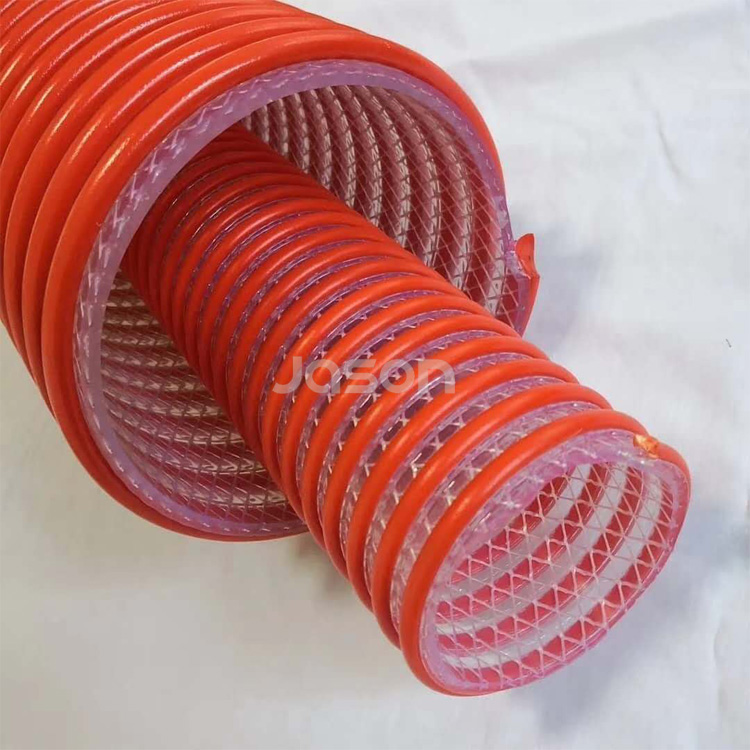

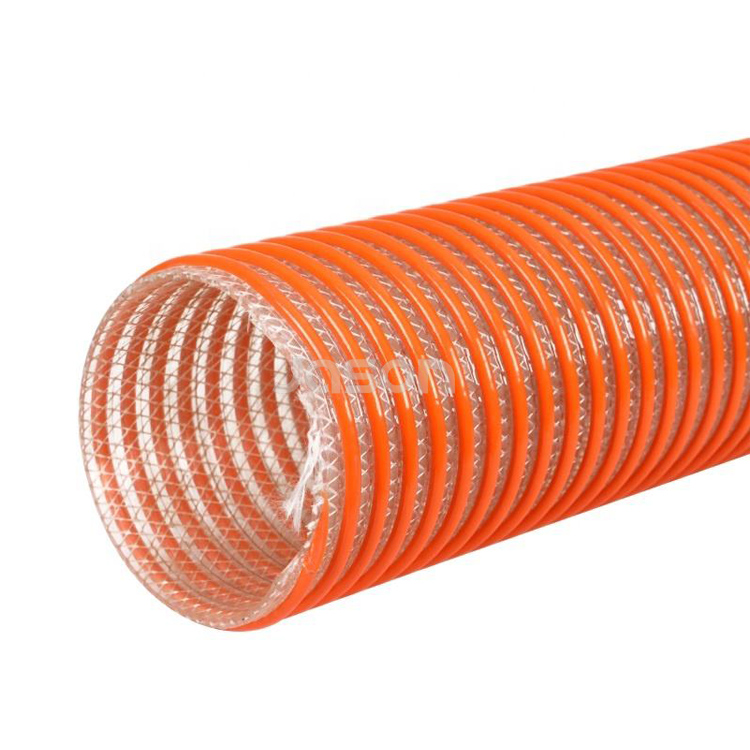

Fabric Reinforced Suction Hose

Fabric reinforced suction hose is essential tools in various industries for transferring liquids and materials. These hoses are designed with a strong fabric reinforcement layer to provide extra strength and durability, making them ideal for applications where a high level of suction is required. The fabric reinforcement also helps prevent the hose from collapsing under vacuum pressure, ensuring a continuous flow of materials. With their flexibility and resistance to abrasion, these hoses are versatile and reliable for use in a wide range of environments, from construction sites to agricultural fields. Whether used for water, oil, chemicals, or other liquids, fabric reinforced suction hoses are a valuable asset for any operation that requires efficient fluid transfer.

Fabric Reinforced Suction Hose

Construction

Wall: High quality PVC

Reinforcement: Rigid PVC helix and polyester fabric

Technical Parameters

Color: Orange

Size: 3/4 inch-16 inch

Length: up to 50m(164ft) or as required

Temperature: -10°C(14°F)-70°C(158 °F)

Features

Durability, high abrasion resistance, flexibility, clear visual flow, small bending radius, smooth inner construction for unrestricted flow of materials

Application

Fish suction, irrigation lines, pumps, rental and construction dewatering, trash pumps, suction and discharge, water suction – heavy duty

Production Process

Specification

Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		weight	coil
inch	mm	mm	bar	psi	bar	psi	g/m	m
3/4	19	23	6	90	18	270	230	50
1	25	29	6	90	18	270	290	50
1-1/4	32	38	6	90	18	270	400	50
1-1/2	38	46	6	90	18	270	650	50
2	50	56	5	75	15	225	700	50
2-1/2	63	71	4	60	12	180	1170	30
3	75	83	3	45	9	135	1300	30
4	100	110	3	45	9	135	2300	30
5	125	137	3	45	9	135	3300	30
6	152	166	2	30	6	90	5500	20
8	200	214	2	30	6	90	6300	10
10	254	270	2	30	6	90	10000	10
12	305	329	2	30	6	90	18000	10
14	358	382	2	30	6	90	20000	10
16	408	432	2	30	6	90	23000	10

Size, working pressure can be customized as required
