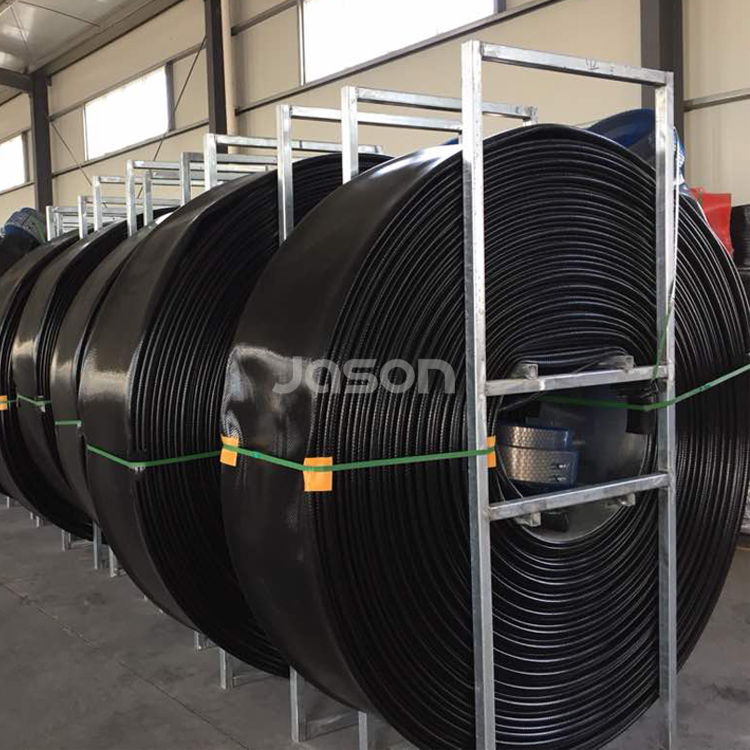

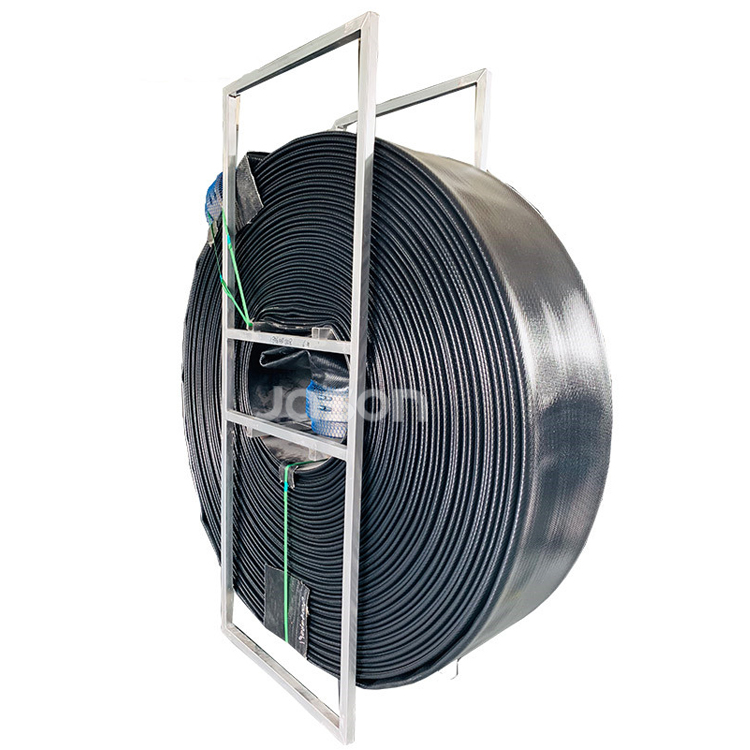

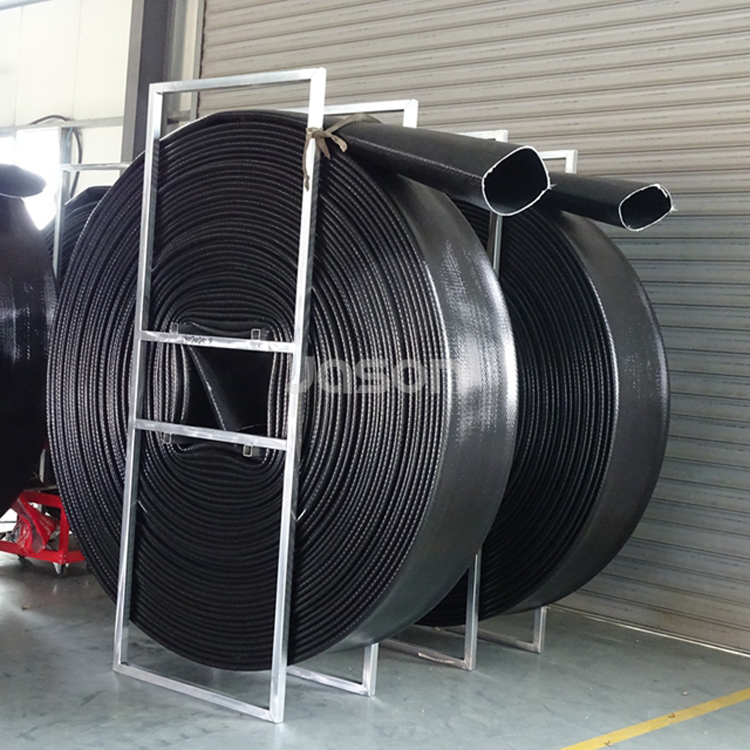

Fracking Hose

Fracking hose is a high pressure TPU layflat hose designed for transfering large volume of water or fracturing fluid. The fracking hose is extremely tough in the harshest environments. It has a long service life and low maintenance. It is easy to transport and deploy compared with traditional rigid hose. (With copper wires available inside to be anti-static for waste water)

Fracking Hose

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Black or as required

Size: 8 inch-16 inch

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

High pressure, abrasion resistance, oil and chemicals resistance, UV resistance, easy to deploy, long service life and excellent flow rates

Application

Frac water or produced water transfer in oil and gas industry

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	M/ft
8	204+3	14	200	42	600	4.2	200/660
10	254+3	14	200	42	600	4.5
12	305+3	10	150	30	450	4.8
14	355+3	10	150	30	450	5.0
16	406+3	8	120	24	450	5.4

Size, working pressure and wall thickness can be customized as required.

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
