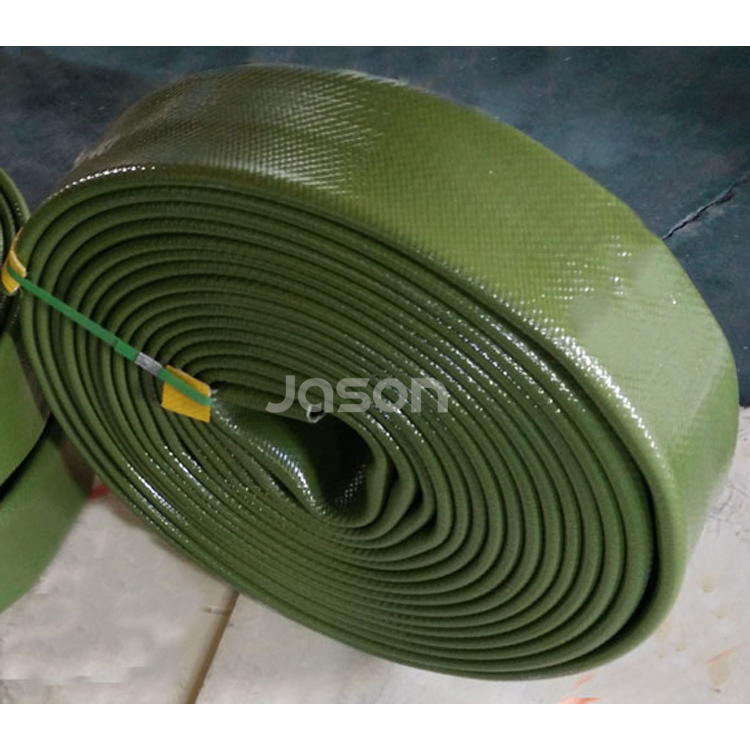

Fuel Transfer Hose

Fuel transfer hose is designed to transfer liquids such as oil, fuel, chemicals and waste water. Antistatic materials are added into the PU raw materials, and several pcs of cooper wires are attached into the reinforcement layer and reach the coupling to provide antistatic properties. It is widely used in temporary oil transfer, army and ship fuel supply.

Fuel Transfer Hose

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn(With copper wires available inside to be anti-static)

Technical Parameters

Color: green or as required

Size: 2 inch-8 inch

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

Antistatic, high pressure, oil and chemicals resistance, UV resistance, safe and easy Iinstallation, long service time

Application

Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing

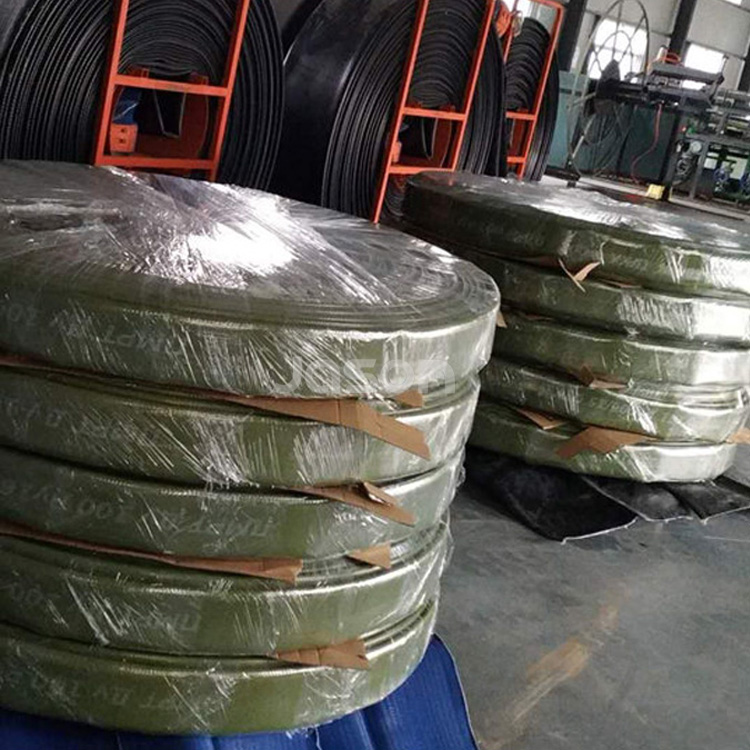

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
2	51+1.5	17	250	51	750	2.7	200/660
3	77+2.0	17	250	51	750	3
4	103+2.0	17	250	51	750	3.2
6	154+2.5	17	250	51	750	4.2
8	204+3.0	15	215	45	645	4.5

Size, working pressure and wall thickness can be customized as required

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
