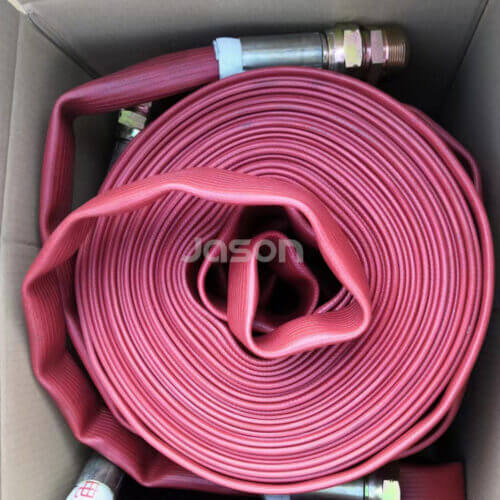

Layflat Air Hose Plus

Construction

Cover and liner: High quality nitrile rubber

Reinforcement: High tenacity double jacket synthetic yarn

Technical Parameters

Color: Black, red, yellow or as required

Size: DN38(1.5 inch), DN51(2 inch)

Length: 20m(66ft), 30m (100ft)or as required

Temperature: -30°C～+100°C(-22°F to 212°F )

Features

High pressure, Light weight, flexibility, durability, abrasion resistant, kinking, twisting, ensuring a long lifespan and reliable performance and etc.

Application

Air compressors, pneumatic tools, rock drill, automated air line, air supply

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
1 1/2	38	60	870	180	2610	6.5	20m(66ft), 30m (100ft)
2	51	60	870	180	2610	6.5	20m(66ft), 30m (100ft)

Size, working pressure and wall thickness can be customized as required

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
