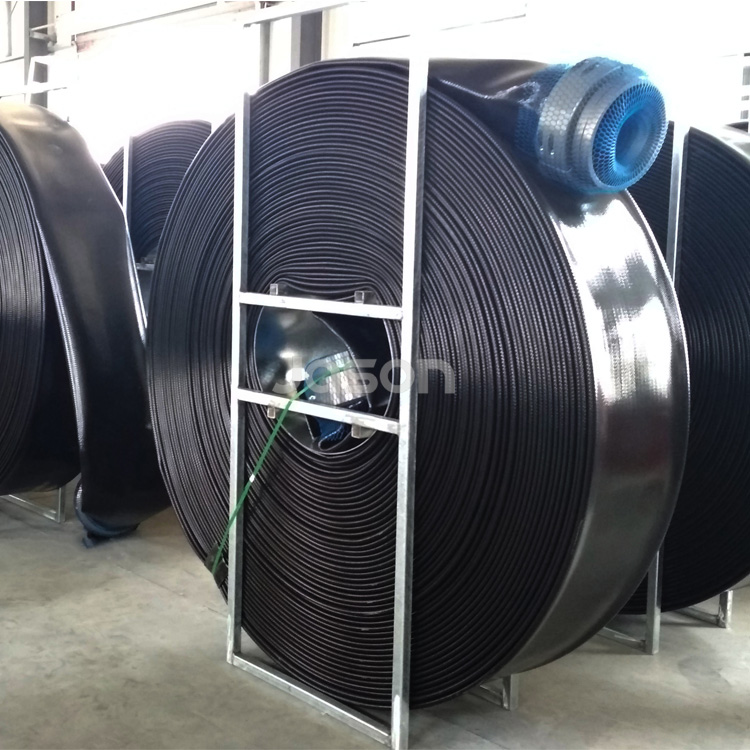

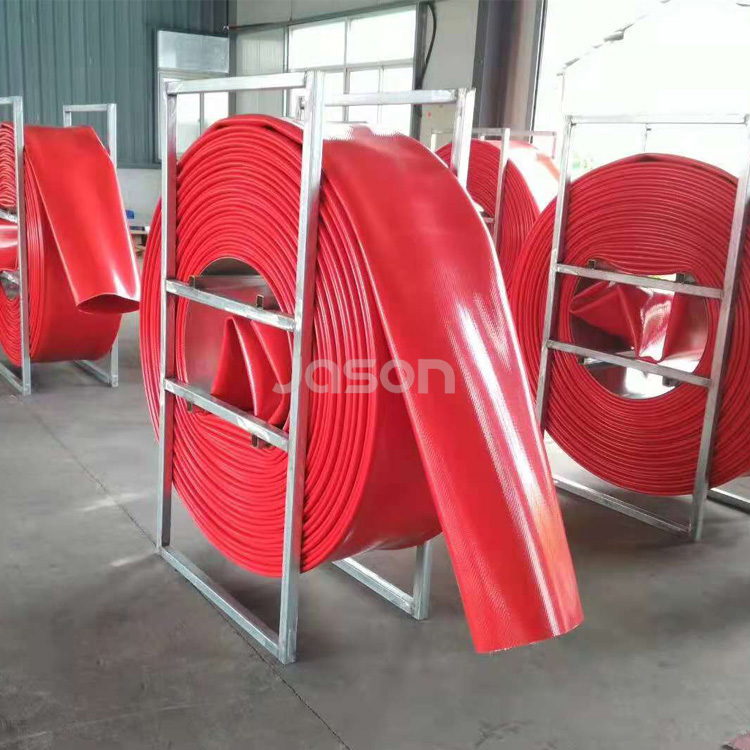

Layflat Supply Hose

TPU layflat discharge(supply) hose use “extrusion through-the-weave” production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester. It is widely used in long-distance water supply, emergency water removal during floods, large volume water discharge and frac solution. It has the advantages of high pressure, more abrasion resistant, extremely tough, fast deployment and retrieval, excellent flow rates, Long service life.

Layflat Supply Hose

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Red, black or as required

Size: 8 inch-16 inch

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

High pressure, abrasion resistant, extremely tough, fast deployment and retrieval, excellent flow rates, Long service life

Application

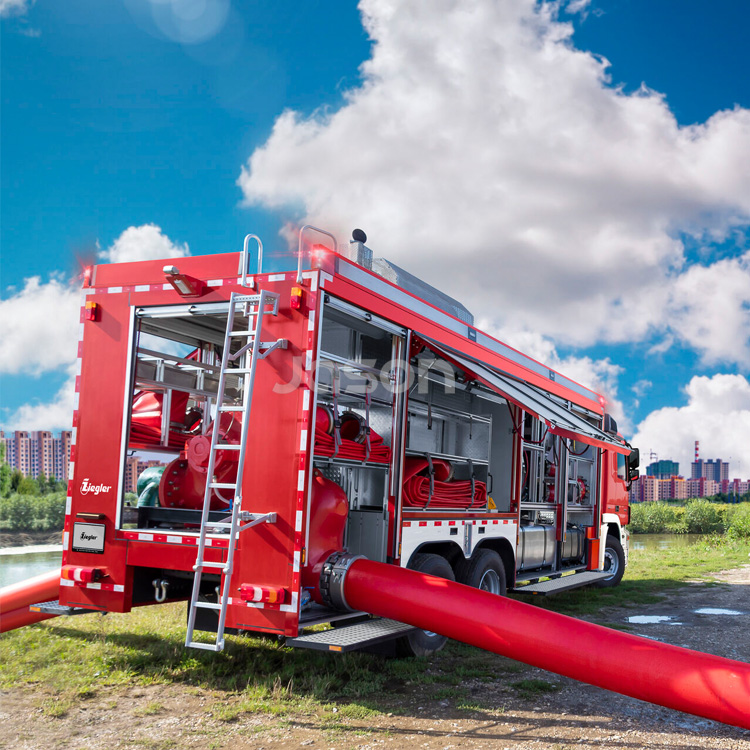

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge and frac solution

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
2	51+1.5	21	300	63	900	3	200/660
3	76+2.0	17	250	51	750	3
4	103+2.0	17	250	51	750	3.5
6	154+2.5	14	200	42	600	4
8	204+3	14	200	42	600	4.2
10	254+3	14	200	42	600	4.5
12	305+3	10	150	30	450	4.8
14	355+3	10	150	30	450	5
16	406+3	8	120	24	360	5.4

Size, working pressure and wall thickness can be customized as required.

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
