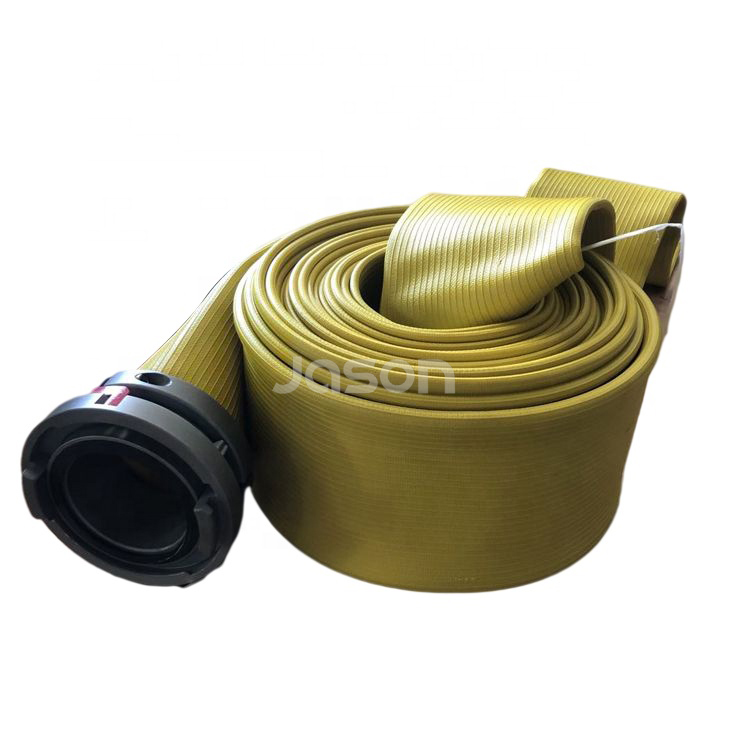

LDH Fire Hose

LDH fire hose is large diameter supply line hose, it has ability to move large volumes of water at a fraction of the friction loss encountered in conventional, smaller-diameter hose. LDH can be thought of as an aboveground water main laid into an apparatus pumping. Size from 4” to 6”.

LDH Fire Hose

Construction

Cover and liner: High quality nitrile rubber

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Yellow or as required

Size: 4 inch, 5 inch, 6 inch

Length: 15m (50ft), 30m (100ft) or as required

Temperature: -30°C～+100°C(-22°F to 212°F )

Features

Flexibility, durability, high tensile strength, abrasion resistant, high adhesive strength, hydrolysis resistant, UV, Ozone and weathering resistant and etc.

Application

Water supply in fire fighting

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
4	103+2.0	17	250	51	750	3	15m (66ft)，30m (100ft)
5	127+2.0	17	250	51	750	3.2
6	154+2.5	14	200	42	600	3.2

Size, working pressure and wall thickness can be customized as required

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
