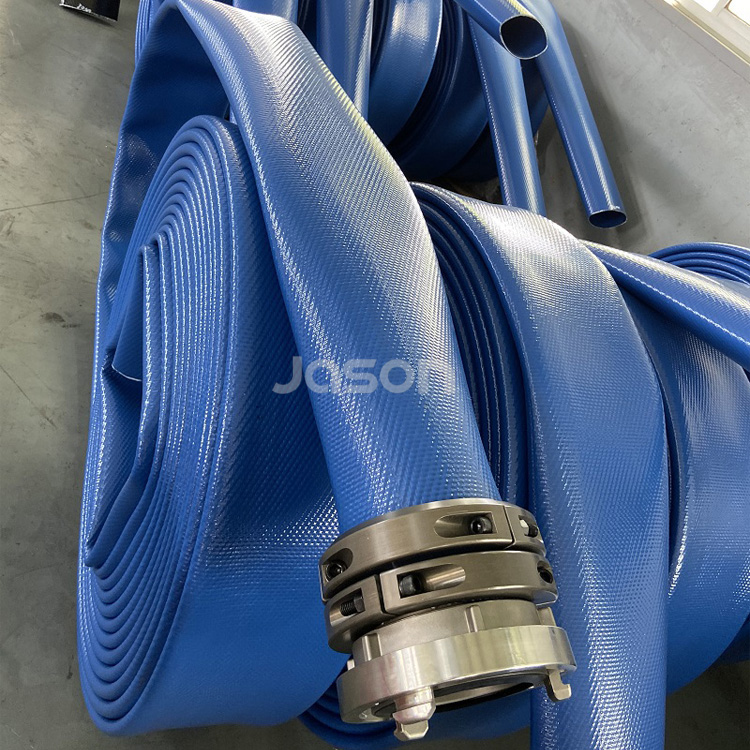

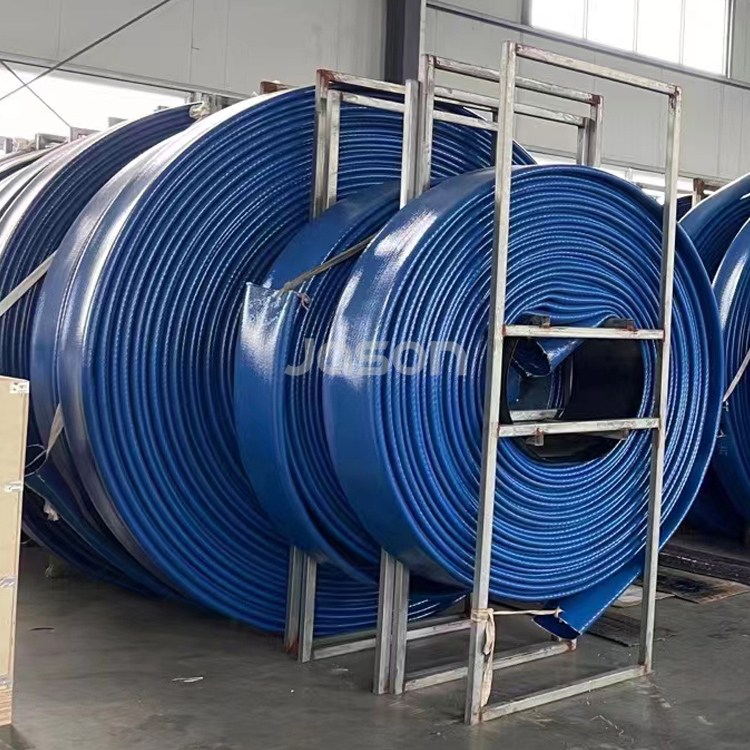

Mine Dewatering Hose

Mine dewatering hose is a high pressure layflat hose designed to remove large volumes of water water from a mine quickly and safely. Mine dewatering hose is manufactured of high tenacity synthetic yarns and using TPU (thermoplastic polyurethane) thru-the-weave extrusion. It is extra tough, abrasion resistant over aggressive mining terrain.

Mine Dewatering Hose

Construction

Cover and liner: High quality TPU

Reinforcement: High tenacity synthetic yarn

Technical Parameters

Color: Blue or as required

Size: 4 inch-12 inch

Length: 200m(660ft) or as required

Temperature: -50°C～+80°C(-60°F to 176°F )

Features

High pressure, abrasion resistance, oil and chemicals resistance, UV resistance, easy to transport, long lifetime, reliablity and safety

Application

Dewatering in Mines or emergency rescue

Production Process

Specification

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
4	103+2.0	17	250	51	750	3.2	200/660
6	154+2.5	17	250	51	750	4
8	204+3	14	200	42	600	4.2
10	254+3	14	200	42	600	4.5
12	305+3	10	150	30	450	4.8

Mine Dewatering Hose Plus

Size		Working Pressure		Burst Pressure		Wall Thickness	Length
Inch	mm	Bar	Psi	Bar	Psi	mm	m/ft
4	103+2.0	28	400	84	1200	5.2	200/660
6	154+2.5	28	400	84	1200	5.9
8	204+3	25	365	75	1100	6.2

Size, working pressure and wall thickness can be customized as required.

Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;

Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.

Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.

Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
