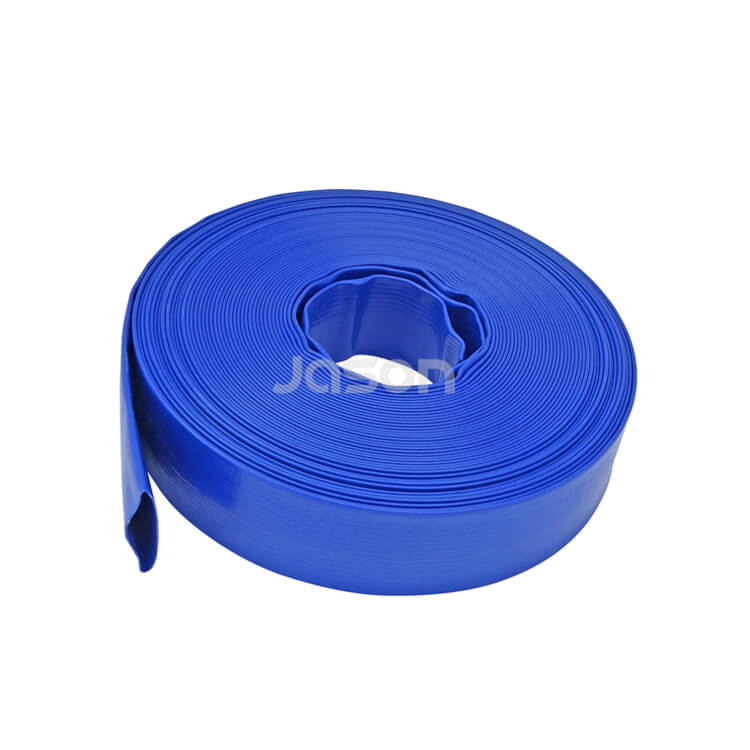

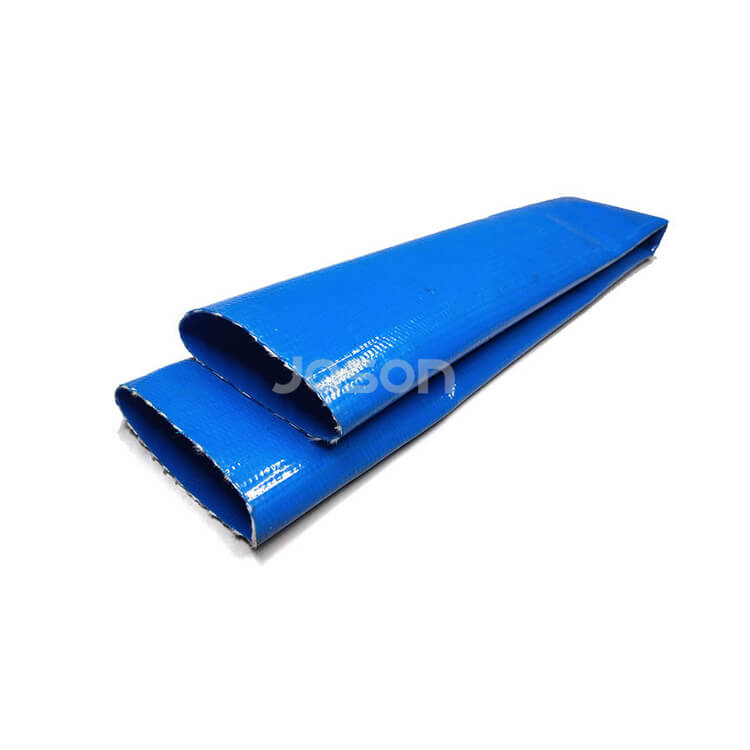

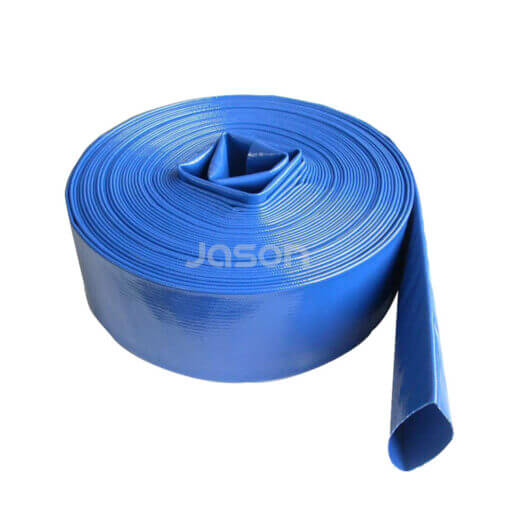

PVC layflat hose is a type of flexible hose that is commonly used for water discharge and supply in agricultural, construction, and civil engineering. It is lightweight, easy to handle, and can be rolled up for storage or transport. The PVC material allows for flexibility and durability. With a smooth inner surface, PVC layflat hose ensures minimal friction loss and efficient water flow. It is an essential tool for irrigation, dewatering, and other water transfer applications where a reliable and cost-effective solution is needed.
Cover and Liner: High quality PVC
Reinforcement: High tenacity synthetic yarn
Color: Blue, red, black or as required
Size: 1-20 inch
Length: 20m (66ft), 50m (164ft) or as required
Temperature: -20°C(-4°F)-70°C(158 °F)
Light weight, cost-saving, easy to storage or transport, abrasion resistance, excellent flow rates
Water discharge and supply in agricultural, construction, and civil engineering
| Size | Working Pressure | Burst Pressure | Length | |||
|---|---|---|---|---|---|---|
| Inch | mm | Bar | Psi | Bar | Psi | m/ft |
| 1 | 25 | 4 | 58 | 12 | 174 | 20m (66ft), 50m (164ft) |
| 1 1/2 | 38 | 4 | 58 | 12 | 174 | |
| 2 | 51+1.5 | 4 | 58 | 12 | 174 | |
| 2 1/2 | 64+1.5 | 4 | 58 | 12 | 174 | |
| 3 | 76+2.0 | 4 | 58 | 12 | 174 | |
| 4 | 103+2.0 | 6 | 87 | 18 | 261 | |
| 6 | 154+2.5 | 6 | 87 | 18 | 261 | |
| 8 | 204+3 | 4 | 58 | 12 | 174 | |
| 10 | 254+3 | 3 | 44 | 9 | 130 | |
| 12 | 305+3 | 3 | 44 | 9 | 130 | |
| 14 | 355+3 | 3 | 44 | 9 | 130 | |
| 16 | 406+3 | 3 | 44 | 9 | 130 | |
| 18 | 455+3 | 2 | 29 | 6 | 87 | |
| 20 | 508+3 | 2 | 29 | 6 | 87 | |
Q1: Why choose Taizhou Jason New Material Co.,Ltd.?
A1: We specialize in layflat hose for 10+ years and you can rely on us for:
- Our own factory guarantee the lead time and the competitive price;
- Abundant OEM & ODM production experience & exclusive protection of your designs;
- A wide range of layflat hose for your selection;
- We have our own QC to assure the superior quality product;
Q2: How long is your delivery time?
A2: It generally depends on the quantity of your order, production time is usually about 15 days.
Q3: Can you send us a sample?
A3: Of course, we could offer free sample, you just need pay the freight.
Q4: Can you produce goods with special specification?
A4: Yes, we can customize the goods, and we also need more details.
